PTN-I Network Connectivity

  1. PTN-I Network Connectivity
    1. X.25 Backbone Layout
    2. X.400 Routing/Connectivity
    3. ATTMail (Auth) Routing/Connectivity
    4. DNIC Routing Diagram
    5. SNMP Trap Routing/Connectivity

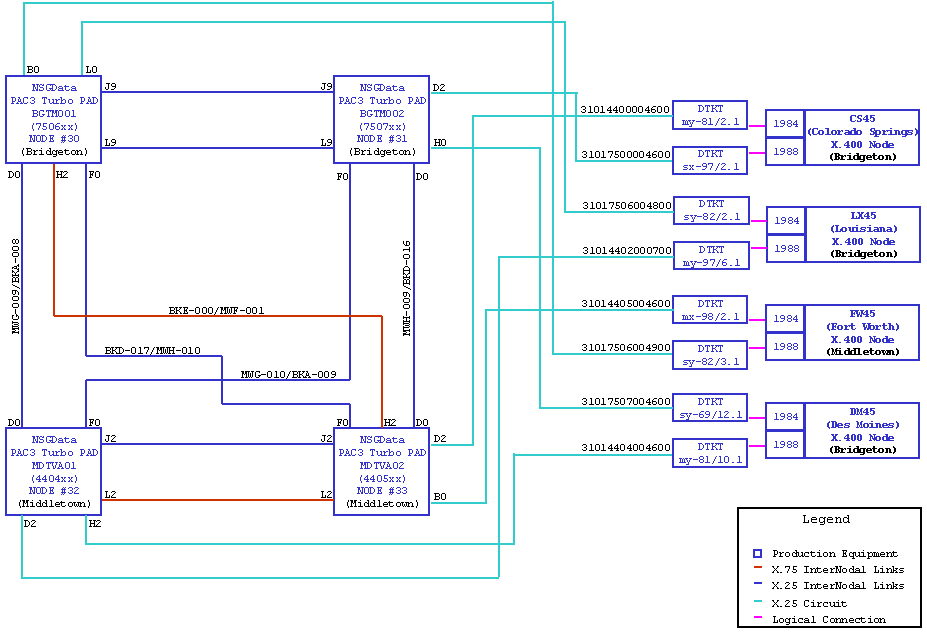

X.25 Backbone Layout

X.400 Routing/Connectivity

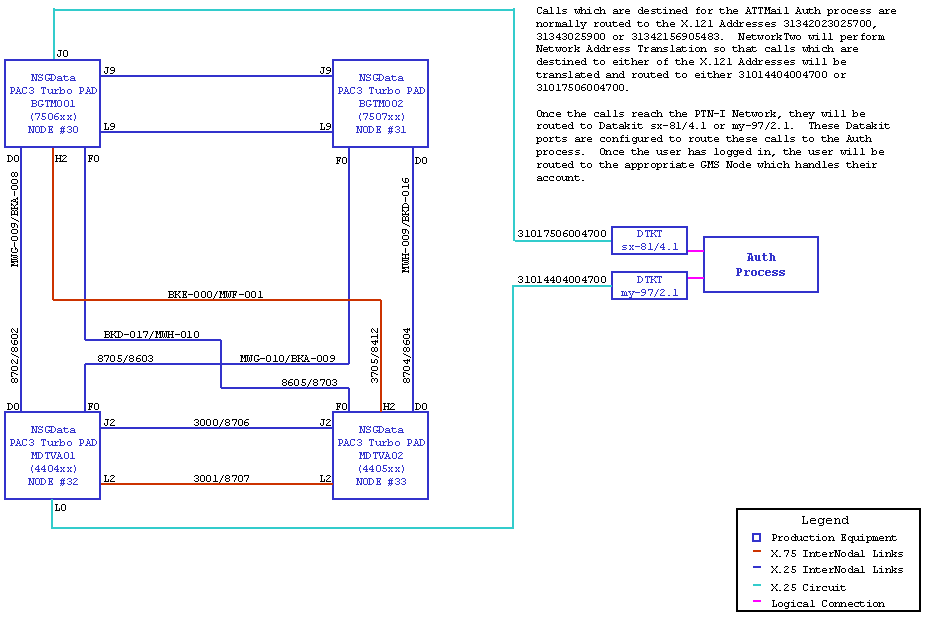

ATTMail (Auth) Routing/Connectivity

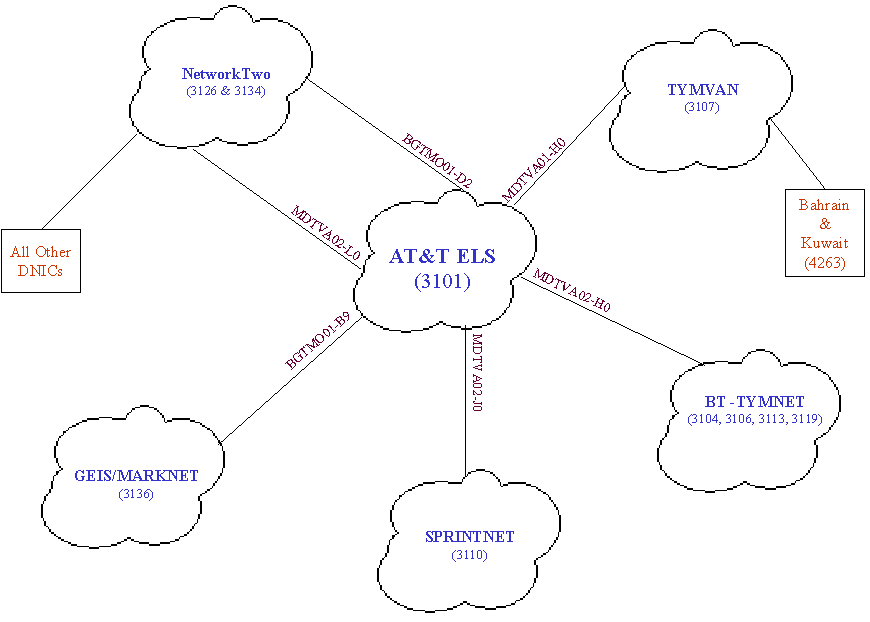

DNIC Routing Diagram

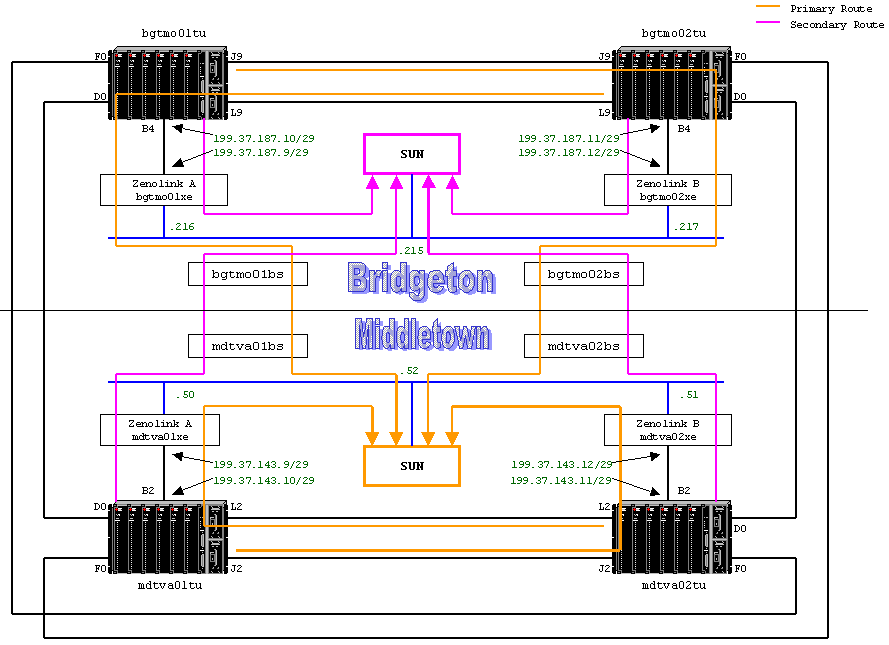

SNMP Trap Routing/Connectivity
